Technology & function

The bike-flash is permanently installed as a warning device at intersections and uses a state-of-the-art thermal sensor camera to permanently monitor a detection zone that can be set up to four meters wide and up to 40 meters deep as required in order to warn motorists of a collision with a cyclist. In particular, the dangerous right/left turn situations in which drivers overlook cyclists or pedestrians in the blind spot can be prevented. As with the well-known and proven speed displays, we also rely on the effective visual effect of immediately raising the awareness of road users.

See and be seen

If a cyclist, e-scooter driver or pedestrian is detected in the thermal image, the two dialog displays are activated: one for the truck/car driver and one for the cyclist, etc. These light up during the entire turning process and warn of the risk of a collision.

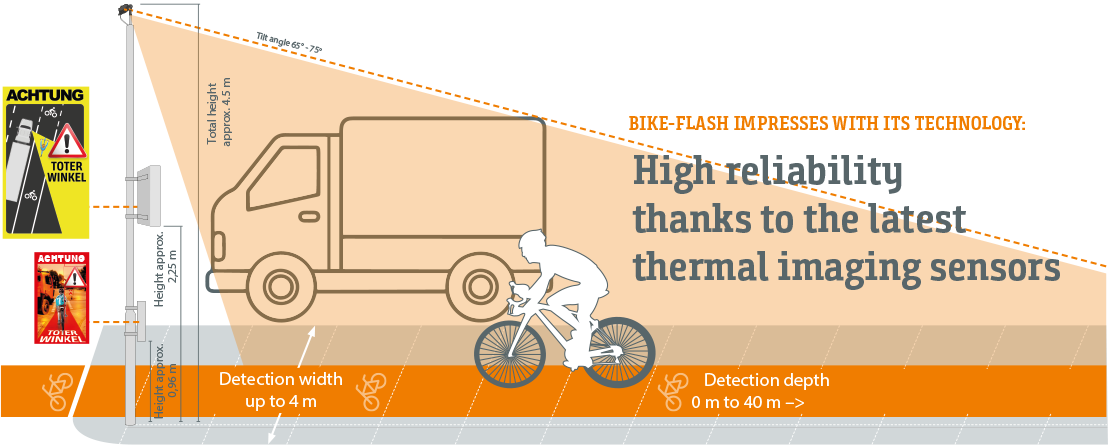

The following four images show the positioning of the bike-flash . Ideally, the installation point of the mast separates the respective vehicle/car and cycle lanes. This ensures that both parties are clearly alerted to the blind spot by the dialog display and have a constant view of each other and the hazard.

Approaching the intersection

Truck driver and cyclist approach the intersection. The cyclist is in the dangerous blind spot the whole time.

Danger: Road users in the blind spot

The bike-flash registers the cyclist in the sensor area of the thermal imaging sensor and lights up the dialog display with integrated LED lamps.

bike-flash - the warning system for turning vehicles

Turning traffic is alerted to road users in the blind spot by the illuminated display and can thus defuse the danger and brake in good time.

Avoid an accident - continue your journey safely

By monitoring the blind spot, bike-flash prevents dangerous situations and thus offers greater safety for all road users - whether trucks, vans, cars, cyclists or skaters.

What's new at bike-flash?

The latest technology will not only control displays, but in the near future:

Display installed bike-flash systems on navigation systems and thus announce possible danger spots.
Provide supportive signals to the turning assistants installed in trucks.
Preventively display or report danger spots using the app.
The new bike-flash has also been technically and functionally upgraded. Thanks to state-of-the-art camera technology and simple plug & play installation, the bike-flash can be used quickly and easily anywhere. Self-sufficient operation is also possible thanks to the optionally available solar module.

See and be seen

What's new at bike-flash?

The Bike-Flash as a preventive dialog display to prevent turning accidents

Bike-Flash Twin: Safety for entrances and exits
